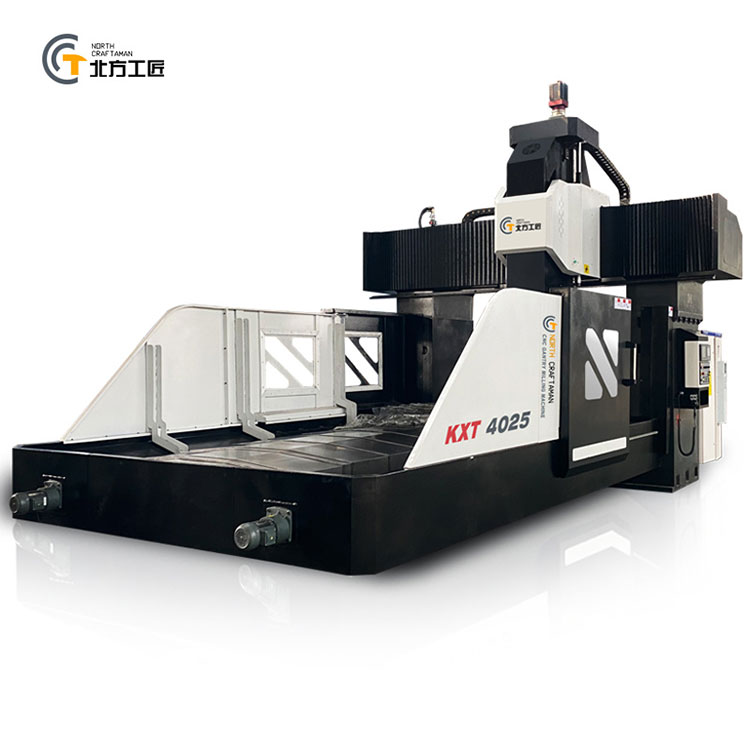

KXT4025 Boring and milling machine

X axis	4200mm	Spindle motor power	18.5/22KW
Y axis	2800mm	Spindle motor torque	117/140N.m
Z axis	1100mm	Rapid Traverse(X/Y/Z)	6/107m/min
Gantry span	2500mm	Servo motor power(XY/Z)	7.5/5.5/5.5KW
Distance from spindle nose to table	150-1250mm	Servo motor torque(XY/Z)	36/27127N.m
Table Size	4000*2200mm	Servo motor speed(XY/Z)	2000rpm
Table Load	15T	Ball screw diameter(X/YIZ)	80/63/50mm
T- Slot Width x Number x Pitch)	22/9/220mm	Cutting feedrate	6000mm/min
Spindle Speed	3,000(6,000-opt.)	Minimum step equivalent	0.001mm
Spindle Taper	BT-50 /ISO-50/ CAT-50	CNC system	FANUC/SINUMERIK/SYNTECIKND
