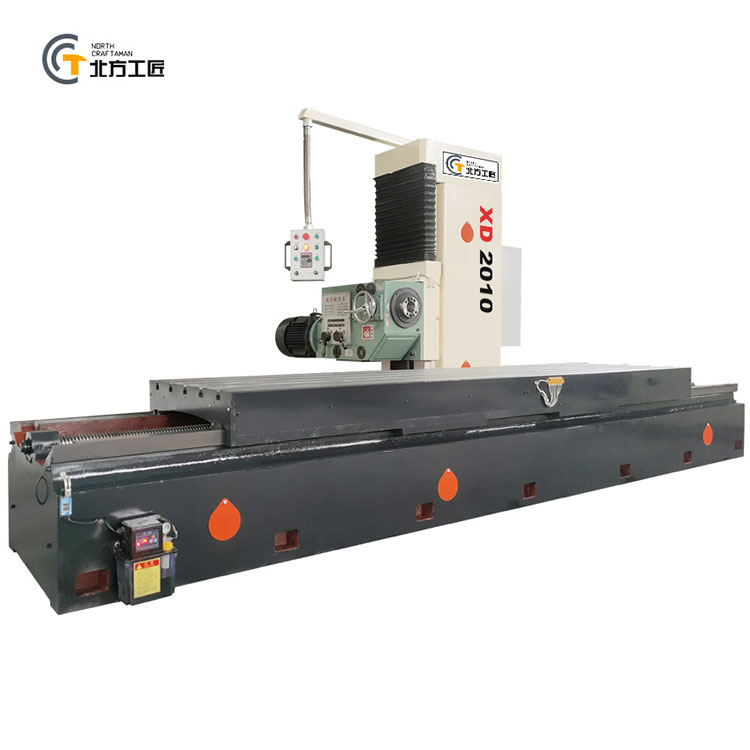

XD2010 CNC gantry milling machine

Specification		Unit	XD2010	XD3010
Table travel		mm	2000	3000
Milling head vertical stroke		mm	1000
Table size	Length	mm	2200	3200
	Width	mm	800
	No. of T-slots	mm	5
	Width of T-slots	mm	22
Table feed speed	Feed	mm/min	Frequency
	Rapid travel	mm/min	Frequency
Spindle taper			7:24,IS050
Spindle speed step		r/min	75/105/150/210/300/420
spindle swivel angle			+35°
Milling head travel		mm	350
Power of spindle motor		Kw	7.5
Power of table motor		Kw	4.0
Milling head vertical motor power		Kw	1.1
Dimensions		mm	370023502100	520023502100
weight		KG	4300	5500
